mocksipipeline Pipeline Example#

This notebook provides an example of how to run the pipeline to produce simulated MOXSI data. This is still a semi-early version of this.

[27]:

import astropy.units as u
import astropy.time
import numpy as np
import matplotlib.pyplot as plt
import aiapy
from sunpy.net import Fido, attrs as a
from astropy.visualization import quantity_support,ImageNormalize,LogStretch,AsinhStretch
from astropy.coordinates import SkyCoord
from astropy.wcs.utils import wcs_to_celestial_frame

from mocksipipeline.physics.dem.data_prep import DataQuery
from mocksipipeline.physics.spectral import SpectralModel
from mocksipipeline.net import XRTSynopticClient, FilterWheel1, FilterWheel2

[2]:

q = Fido.search(
    a.Time('2022-01-01', end='now'),
    a.hek.EventType('FL'),
    a.hek.FL.GOESCls > "X1.0",
    a.hek.OBS.Observatory == "GOES"
)

[3]:

q[0][['event_starttime', 'event_endtime']]

[3]:
HEKTable length=6
event_starttimeevent_endtime
TimeTime
2022-03-30 17:21:00.0002022-03-30 17:46:00.000
2022-04-17 03:17:00.0002022-04-17 03:51:00.000
2022-04-20 03:41:00.0002022-04-20 04:04:00.000
2022-04-30 13:37:00.0002022-04-30 13:52:00.000
2022-05-03 13:09:00.0002022-05-03 13:31:00.000
2022-05-10 13:50:00.0002022-05-10 13:59:00.000
[2]:

flare_time = astropy.time.Time('2022-03-30T17:55')

[3]:

correction_table = aiapy.calibrate.util.get_correction_table()
pointing_table = aiapy.calibrate.util.get_pointing_table(flare_time-6*u.h, flare_time+6*u.h)
error_table = aiapy.calibrate.util.get_error_table(
    error_table='/Users/wtbarnes/ssw/sdo/aia/response/aia_V3_error_table.txt'
)

/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/erfa/core.py:154: ErfaWarning: ERFA function "taiutc" yielded 1 of "dubious year (Note 4)"
  warnings.warn('ERFA function "{}" yielded {}'.format(func_name, wmsg),
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/erfa/core.py:154: ErfaWarning: ERFA function "utctai" yielded 1 of "dubious year (Note 3)"
  warnings.warn('ERFA function "{}" yielded {}'.format(func_name, wmsg),
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/erfa/core.py:154: ErfaWarning: ERFA function "dtf2d" yielded 100 of "dubious year (Note 6)"
  warnings.warn('ERFA function "{}" yielded {}'.format(func_name, wmsg),
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/erfa/core.py:154: ErfaWarning: ERFA function "dtf2d" yielded 10 of "dubious year (Note 6)"
  warnings.warn('ERFA function "{}" yielded {}'.format(func_name, wmsg),

[4]:

temperature_bin_edges = 10**np.arange(5.5, 7.6, 0.1) * u.K

[5]:

dq = DataQuery('../pipeline-runs/flare-test',
               flare_time,
               aia_error_table=error_table,
               aia_correction_table=correction_table,
               aia_pointing_table=pointing_table,
               temperature_bin_edges=temperature_bin_edges)

WARNING: UnitsWarning: The unit 'Angstrom' has been deprecated in the VOUnit standard. Suggested: 0.1nm. [astropy.units.format.utils]
WARNING: AstropyDeprecationWarning: The truth value of a Quantity is ambiguous. In the future this will raise a ValueError. [astropy.units.quantity]

[6]:

dem_cube = dq.run()

/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: invalid value encountered in sqrt
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: invalid value encountered in sqrt
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: invalid value encountered in sqrt
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: invalid value encountered in sqrt
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: invalid value encountered in sqrt
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: invalid value encountered in sqrt
  result = super().__array_ufunc__(function, method, *arrays, **kwargs)
WARNING: UnitsWarning: The unit 'Angstrom' has been deprecated in the VOUnit standard. Suggested: 0.1nm. [astropy.units.format.utils]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
  0%|                                                                                                                                   | 0.00/2.02k [00:00<?, ? x10^2 DEM/s]/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
  0%|                                                                                                                            | 1.00/2.02k [00:00<16:47, 2.01 x10^2 DEM/s]arning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
  0%|▏                                                                                                                           | 3.00/2.02k [00:00<08:35, 3.92 x10^2 DEM/s]e/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
  0%|▎                                                                                                                           | 5.00/2.02k [00:01<06:16, 5.36 x10^2 DEM/s]
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 2.02k/2.02k [02:09<00:00, 15.6 x10^2 DEM/s]

[7]:

fig = plt.figure(figsize=(15,15*5/4))
for i,cube in enumerate(dem_cube['em']):
    ax = fig.add_subplot(5,4,i+1,projection=cube)
    ax.set_title(f'{dq.temperature_bin_centers[i].to("MK"):.3f}')
    cube.plot(axes=ax,norm=ImageNormalize(vmax=1e28,vmin=1e25,stretch=LogStretch()))

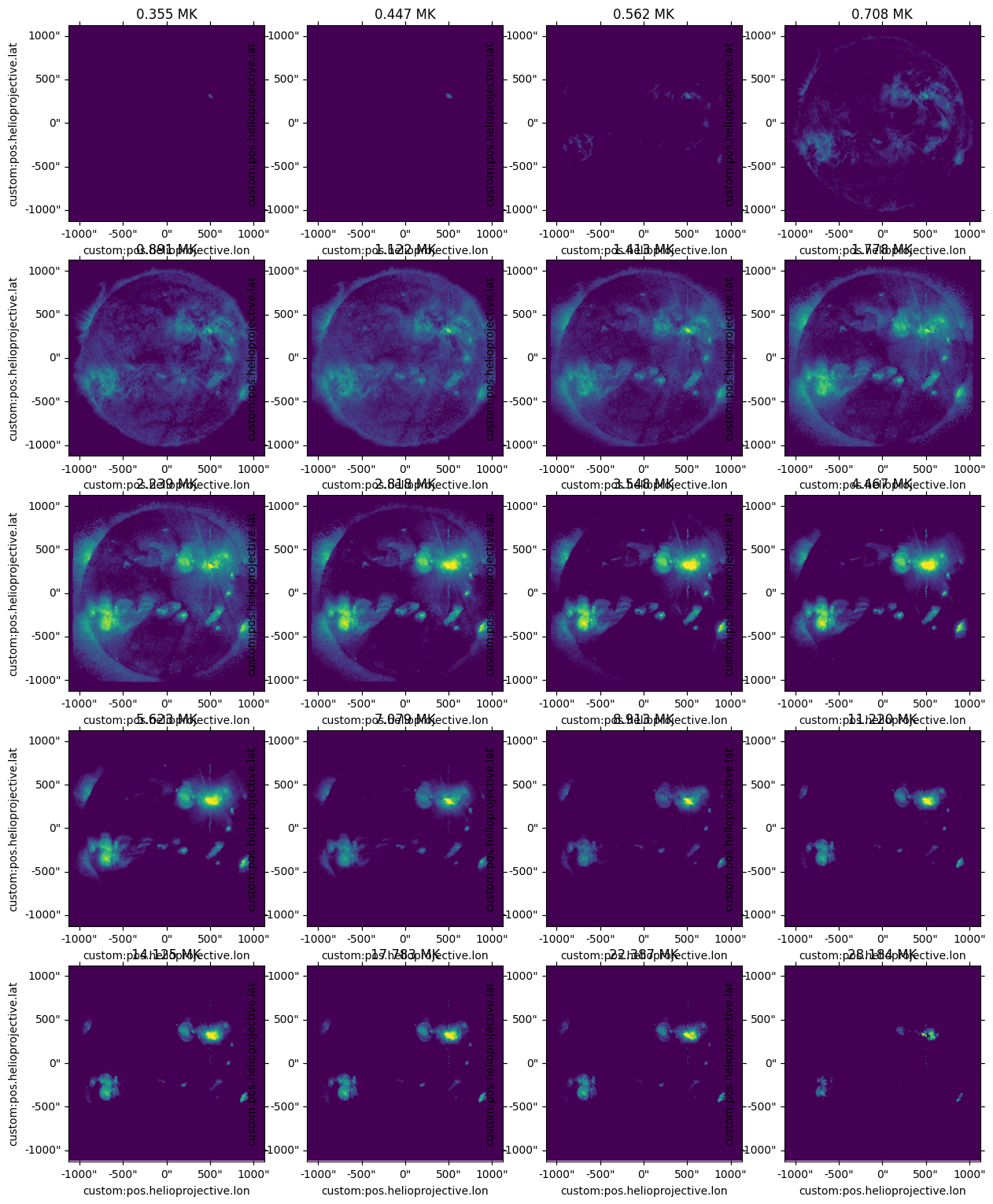

../_images/reports_moxsi-pipeline-testing_9_0.png
[28]:

celestial_wcs = dq.collection['94.0 Angstrom'].wcs

[66]:

flare_loc = SkyCoord(Tx=500*u.arcsec, Ty=300*u.arcsec, frame=wcs_to_celestial_frame(celestial_wcs))

[67]:

fig = plt.figure()
ax = fig.add_subplot(projection=dem_cube['em'][10].wcs)
dem_cube['em'][10].plot(norm=ImageNormalize(vmax=1e28,vmin=1e25,stretch=LogStretch()),axes=ax)
ax.plot_coord(flare_loc,marker='x',color='C1',ls='')

[67]:

[<matplotlib.lines.Line2D at 0x64c63baf0>]

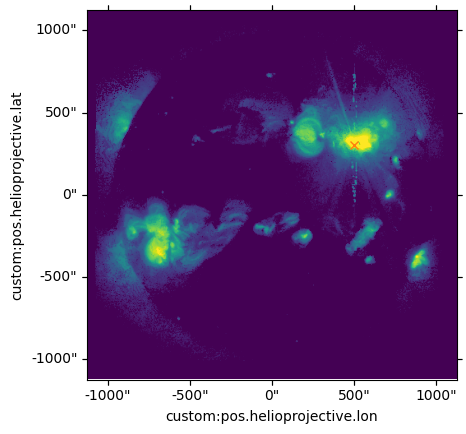

../_images/reports_moxsi-pipeline-testing_12_1.png
[68]:

ir,ic = dem_cube['em'][0].wcs.world_to_array_index(flare_loc)
plt.plot(dq.temperature_bin_centers,dem_cube['em'].data[:,ir,ic])
plt.xscale('log')
plt.yscale('log')

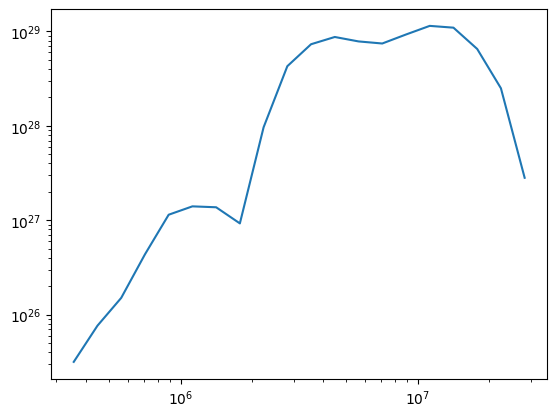

../_images/reports_moxsi-pipeline-testing_13_0.png
[9]:

spec_model = SpectralModel(celestial_wcs,)

WARNING: UnitsWarning: The unit 'Angstrom' has been deprecated in the VOUnit standard. Suggested: 0.1nm. [astropy.units.format.utils]
WARNING: AstropyDeprecationWarning: The truth value of a Quantity is ambiguous. In the future this will raise a ValueError. [astropy.units.quantity]

[10]:

spec_cube = spec_model.run(dem_cube['em'])

[18]:

i_wave = 500
spec_cube[i_wave].plot(norm=ImageNormalize(stretch=LogStretch()))
plt.title(spec_cube.axis_world_coords(0)[0][i_wave].to('Angstrom'))
plt.colorbar()

[18]:

<matplotlib.colorbar.Colorbar at 0x2d92461f0>

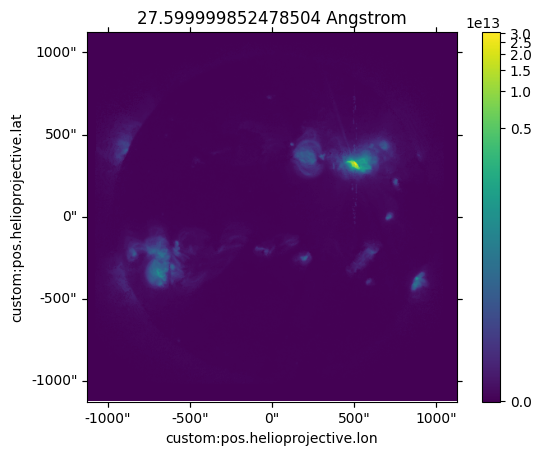

../_images/reports_moxsi-pipeline-testing_16_1.png

DEM Sandbox#

[14]:

import sunkit_dem

[16]:

dem_model = sunkit_dem.Model(
    dq.collection[250:350,275:375],
    dq.response_kernels,
    dq.temperature_bin_edges,
    model='hk12',
)

[45]:

dem_test = dem_model.fit(
    alpha=1.0,
    increase_alpha=1.5,
    max_iterations=50,
)

/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
  0%|                                                                                                                                     | 0.00/100 [00:00<?, ? x10^2 DEM/s]/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
 14%|█████████████████▋                                                                                                            | 14.0/100 [00:01<00:07, 11.5 x10^2 DEM/s]/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
 30%|█████████████████████████████████████▊                                                                                        | 30.0/100 [00:02<00:03, 18.1 x10^2 DEM/s]/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
 62%|██████████████████████████████████████████████████████████████████████████████                                                | 62.0/100 [00:04<00:02, 13.6 x10^2 DEM/s]/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
 72%|██████████████████████████████████████████████████████████████████████████████████████████▋                                   | 72.0/100 [00:05<00:02, 12.6 x10^2 DEM/s]/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:198: RuntimeWarning: divide by zero encountered in divide
  rmatrixin[:,kk]=rmatrix[:,kk]/ednin[kk]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:199: RuntimeWarning: divide by zero encountered in divide
  dn=dnin/ednin
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/demregpy/demmap.py:200: RuntimeWarning: invalid value encountered in divide
  edn=ednin/ednin
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 100/100 [00:06<00:00, 14.7 x10^2 DEM/s]

[46]:

fig = plt.figure(figsize=(15,15*5/4))
for i,cube in enumerate(dem_test['em']):
    ax = fig.add_subplot(5,4,i+1)
    ax.set_title(dem_model.temperature_bin_centers[i].to('MK'))
    im = ax.imshow(cube.data, origin='lower', norm=ImageNormalize(vmax=1e29,vmin=1e25,stretch=LogStretch()))
    fig.colorbar(im)

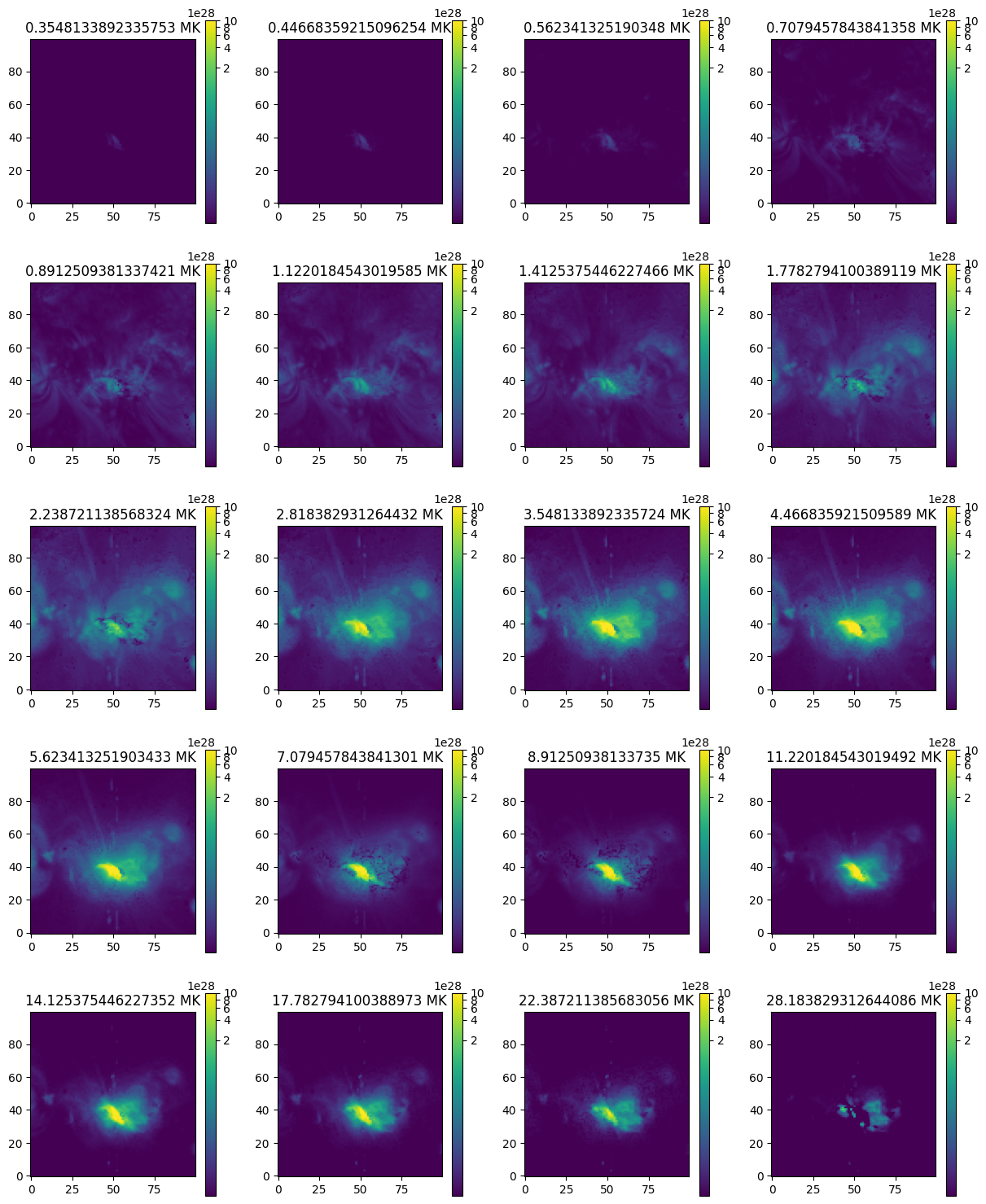

../_images/reports_moxsi-pipeline-testing_21_0.png
[47]:

plt.plot(dq.temperature_bin_centers, dem_test['em'].data.sum(axis=(1,2)))
plt.yscale('log')
plt.xscale('log')

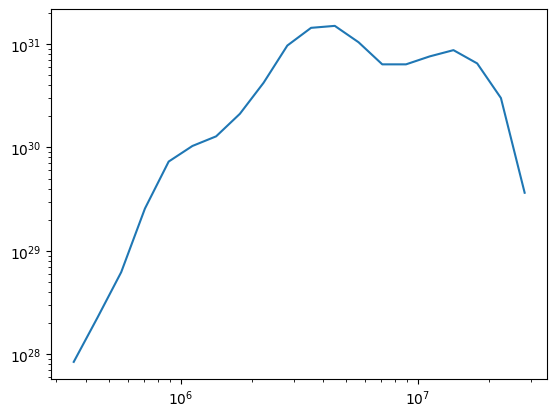

../_images/reports_moxsi-pipeline-testing_22_0.png
[15]:

import aiapy

[16]:

psf = aiapy.psf.psf(94*u.angstrom)

[17]:

psf

[17]:

array([[4.60785924e-19, 2.32479018e-20, 7.02182465e-21, ...,
        7.93771867e-21, 6.80819254e-21, 2.47934782e-20],
       [2.39754030e-19, 6.78289975e-21, 2.70996339e-20, ...,
        1.30284724e-20, 2.65214007e-20, 5.56855716e-21],
       [6.19263597e-20, 1.79629045e-20, 2.34727740e-20, ...,
        5.35619713e-21, 9.28742196e-21, 3.47981757e-20],
       ...,
       [5.31123728e-20, 8.81561099e-21, 5.86057299e-21, ...,
        8.04738976e-21, 9.51783177e-21, 1.51250869e-20],
       [6.24735004e-20, 3.52169671e-20, 1.25408920e-20, ...,
        9.73032574e-21, 2.38707768e-20, 1.79766677e-20],
       [2.40086119e-19, 2.54438315e-20, 2.11168802e-20, ...,
        5.91496117e-21, 3.34095760e-20, 4.36772476e-20]])

[19]:

import sunpy.map

[41]:

m = sunpy.map.Map('../pipeline-runs/flare-test/AIA/aia_lev1_94a_2022_03_30t17_54_59_12z_image_lev1.fits')

[42]:

%%timeit -n 1 -r 1
m_decon = aiapy.psf.deconvolve(m, psf=psf)

23.5 s ± 0 ns per loop (mean ± std. dev. of 1 run, 1 loop each)

[46]:

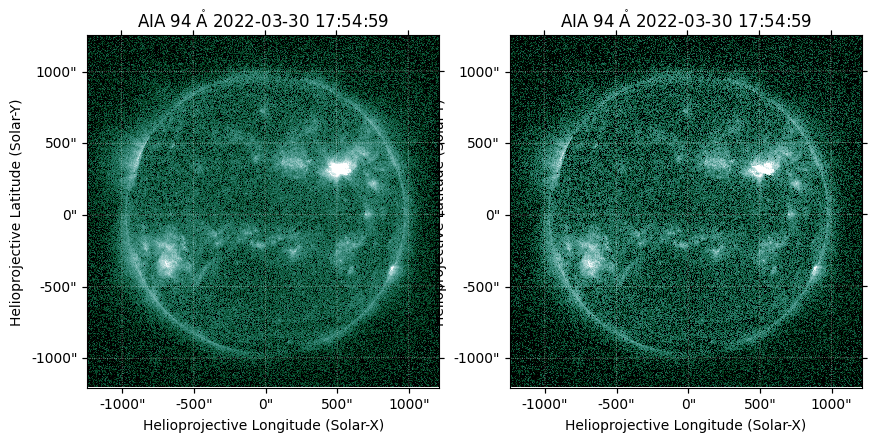

fig = plt.figure(figsize=(10,5))
ax = fig.add_subplot(121, projection=m)
m.plot(axes=ax,vmin=0,vmax=100)
ax = fig.add_subplot(122, projection=m)
m_decon.plot(axes=ax, vmin=0, vmax=100)

[46]:

<matplotlib.image.AxesImage at 0x2d9b6fc10>
../_images/reports_moxsi-pipeline-testing_29_1.png
[48]:

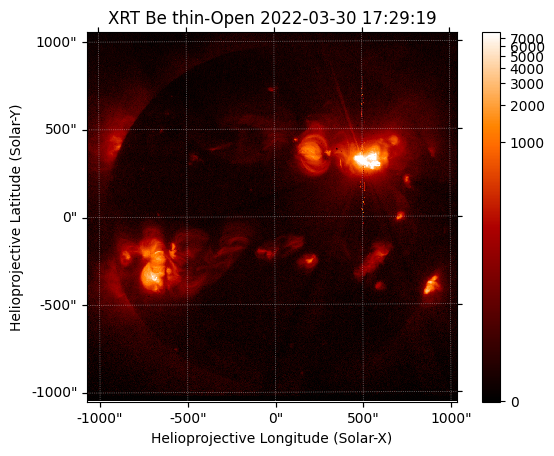

m_xrt = sunpy.map.Map('../pipeline-runs/flare-test/XRT/comp_XRT20220330_172919.2.fits')
m_xrt.peek(clip_interval=(1,99.9)*u.percent)
../_images/reports_moxsi-pipeline-testing_30_0.png
[ ]:
