[119]:
import numpy as np
import scipy.special
import astropy.units as u
from astropy.coordinates import SkyCoord
import matplotlib
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
import ndcube
from ndcube.extra_coords import QuantityTableCoordinate
from sunpy.coordinates import get_earth, Helioprojective
from astropy.convolution import convolve, Gaussian1DKernel
import fiasco
from mocksipipeline.physics.spectral import get_spectral_tables
from mocksipipeline.detector.response import SpectrogramChannel, convolve_with_response, ThinFilmFilter
from synthesizAR.instruments import InstrumentDEM
from overlappy.wcs import overlappogram_fits_wcs, pcij_matrix
[120]:
def degrade_spectra(spec, resolution, chan):
std = resolution / (2*np.sqrt(2*np.log(2))) # FWHM is 0.5 so convert to sigma using W = 2\sqrt{2\ln2}\sigma
std_eff = (std / chan.spectral_resolution).to_value('pix') # Scale sigma by bin width
kernel = Gaussian1DKernel(std_eff)
data_smooth = convolve(spec.data, kernel)
return ndcube.NDCube(data_smooth, wcs=spec.wcs, meta=spec.meta, unit=spec.unit)
[92]:
def compute_total_flux(dem, spec_table, chan_1, chan_3, x_1, x_3):
intensity = InstrumentDEM.calculate_intensity(dem, spec_table, {})
flux_1 = convolve_with_response(intensity, chan_1, electrons=False, include_gain=False)
flux_3 = convolve_with_response(intensity, chan_3, electrons=False, include_gain=False)
flux_total = ndcube.NDCube(flux_1.data+np.interp(x_1, x_3, flux_3.data),
wcs=flux_1.wcs, unit=flux_1.unit)
return flux_total
[2]:
def get_abundance(element, abundance_filename):
el = fiasco.Element(element, 1*u.MK, abundance_filename=abundance_filename)
return el.abundance
[182]:
def add_line_ids_to_axis(ax, line_ids, rotation=90, use_wcs=True, axis_unit=None, add_ticklabels=True, wcs=None, color='k'):
if use_wcs:
if wcs is None:
ax_wcs = ax.wcs
else:
ax_wcs = wcs
for ion,line in line_ids:
if use_wcs:
x_loc = ax_wcs.world_to_pixel(line)
else:
x_loc = line.to_value(axis_unit)
ax.axvline(x=x_loc, ls=':', color=color,)
if add_ticklabels:
ax2 = ax.secondary_xaxis('top')
x_tick_locs = u.Quantity([l for _,l in line_ids])
if use_wcs:
x_tick_locs = ax_wcs.world_to_pixel(x_tick_locs)
else:
x_tick_locs = x_tick_locs.to_value(axis_unit)
ax2.set_xticks(x_tick_locs,
labels=[f'{ion}, {line.to_string(format="latex_inline")}' for ion,line in line_ids],
rotation=rotation,
horizontalalignment='center',
color=color,
#verticalalignment='center'
)
[4]:
def get_line_ratio(spectra, wavelengths, line_num, line_denom):
i_num = np.argmin(np.fabs(wavelengths - line_num))
i_denom = np.argmin(np.fabs(wavelengths - line_denom))
ratio = spectra[i_num] / spectra[i_denom]
return ratio
[5]:
def dem_table_to_ndcube(dem, temperature, meta=None):
tab_coord = QuantityTableCoordinate(temperature,
names='temperature',
physical_types='phys.temperature')
return ndcube.NDCube(dem, wcs=tab_coord.wcs, meta=meta)
[6]:
def get_goft(ion, wave, p0=1e15*u.K*u.cm**(-3)):
density = p0 / ion.temperature
g_of_t = ion.contribution_function(density, couple_density_to_temperature=True)
transitions = ion.transitions.wavelength[~ion.transitions.is_twophoton]
idx = np.argmin(np.abs(transitions - wave))
return g_of_t[..., idx]
[7]:
line_ids = [
('Fe XVIII',14.21*u.angstrom), # also targeted by MaGIXS
('Fe XVII', 15.01*u.angstrom), # also targeted by MaGIXS
('Fe XVII', 16.78*u.AA),
('Fe XVII', 17.05*u.AA),
('O VII', 21.60*u.angstrom), # also targeted by MaGIXS
('O VII', 21.81*u.angstrom),
('O VII', 22.10*u.AA),
('O VIII', 18.97*u.angstrom), # also targeted by MaGIXS
('Fe XXV', 1.86*u.AA),
('Ca XIX', 3.21*u.AA),
('Si XIII', 6.74*u.AA),
('Mg XI', 9.32*u.AA),
('Fe XVII', 11.25*u.AA),
('Fe XX', 12.83*u.AA),
('Ne IX', 13.45*u.AA),
('Fe XIX', 13.53*u.AA),
('C VI', 33.73*u.AA),
('C V', 40.27*u.AA),
('Si XII', 44.16*u.AA),
('Si XI', 49.18*u.AA),
]
Observables from Analytical DEMs#
In this notebook:
Generate analytical DEMs following Guennou et al. (2012) parameterized over \((T_p,a,b)\)
For each DEM compute MOXSI spectra using response functions and CHIANTI data

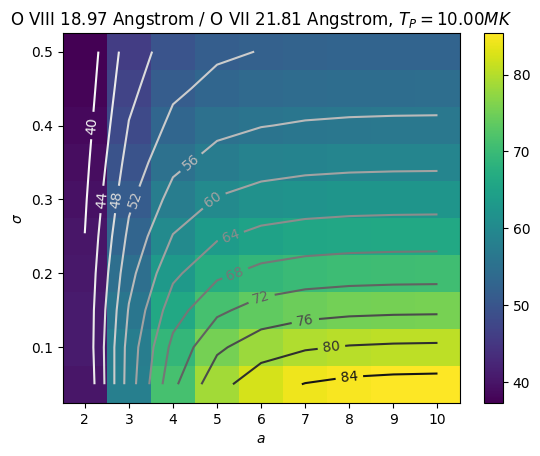

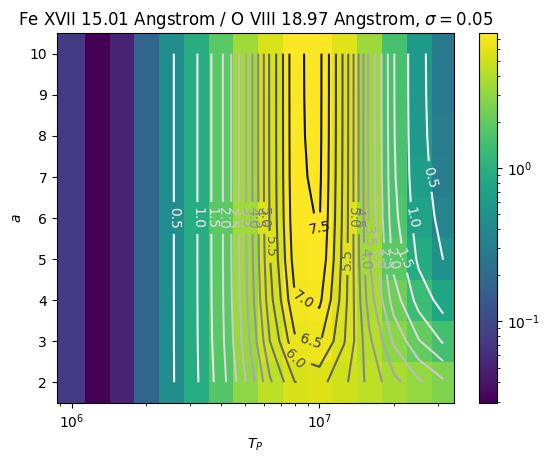

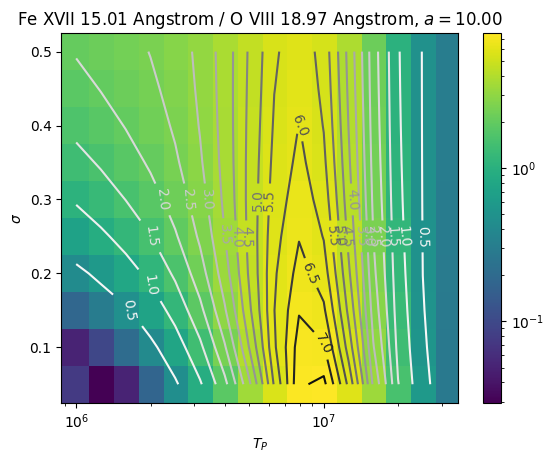

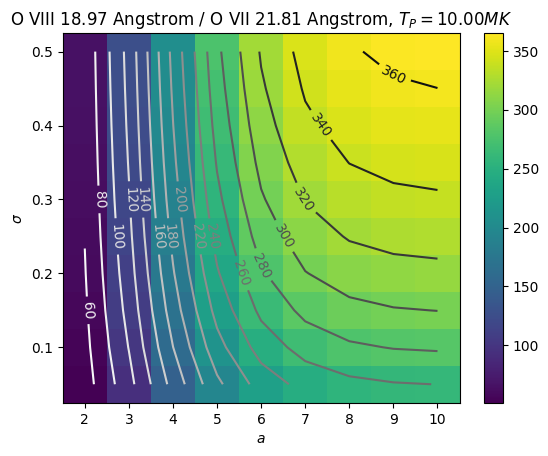

Look at select intensity ratios
Analyze how the diagnostic power of these observables vary as the effective spectral resolution \(\Delta\lambda_{Eff}\) decreases.
Grab DEM data from CHIANTI
[8]:
dem_cubes = []
for fname in ['flare.dem', 'active_region.dem', 'quiet_sun.dem']:
p = fiasco.io.Parser(fname, ascii_dbase_root='/Users/wtbarnes/ssw/packages/chianti/dbase/')
tab = p.parse()
dem_cubes.append((fname, dem_table_to_ndcube(tab['em'], tab['temperature_bin_center'], meta=tab.meta)))
dem_models = ndcube.NDCollection(dem_cubes)
Analytical DEM#
[9]:
def guennou_dem(temperature, T_P, EM_total, alpha, sigma, sigma_fw=0.15):
T_P = T_P.to(temperature.unit)
T_0 = calculate_tangent_point(T_P, alpha, sigma_fw)
norm_factor = EM_total #/ _normalization_integral(T_0, T_P, alpha, sigma, sigma_fw)
dem_low = guennou_dem_low(temperature, T_0, T_P, alpha, sigma_fw)
dem_high = guennou_dem_high(temperature, T_P, sigma, sigma_fw)
dem = guennou_dem_connection(temperature, T_P, sigma_fw)
dem[temperature < T_0] = dem_low[temperature < T_0]
dem[temperature > T_P] = dem_high[temperature > T_P]
dem = dem * norm_factor
return dem
def calculate_tangent_point(T_P, alpha, sigma):
# Point of tangency between Gaussian and power-law
# in log-log space
return T_P * 10**(-alpha * (sigma**2) * np.log(10))
def _gaussian(x, sigma):
return np.exp(-((x/sigma)**2)/2)/sigma/np.sqrt(2*np.pi)
def _normalization_integral(T_0, T_P, alpha, sigma, sigma_fw):
x = np.log10(T_0.to_value('K')) - np.log10(T_P.to_value('K'))
term_1 = _gaussian(x, sigma_fw) / alpha
term_2 = sigma / np.sqrt(2)
term_3 = sigma_fw / np.sqrt(2) * scipy.special.erf(-x / (2 * sigma_fw**2))
return term_1 + term_2 + term_3
def guennou_dem_low(temperature, T_0, T_P, alpha, sigma):
x = np.log10(T_0.to_value('K')) - np.log10(T_P.to_value('K'))
return _gaussian(x, sigma) * (temperature / T_0)**alpha
def guennou_dem_high(temperature, T_P, sigma, sigma_fw):
x = np.log10(temperature.to_value('K')) - np.log10(T_P.to_value('K'))
return _gaussian(x, sigma) * sigma / sigma_fw
def guennou_dem_connection(temperature, T_P, sigma):
x = np.log10(temperature.to_value('K')) - np.log10(T_P.to_value('K'))
return _gaussian(x, sigma)
[72]:
temperature = 10**np.arange(5,8,0.01) * u.K
EM_total = 1e28 * u.cm**(-5)
T_P = 4e6 * u.K
alpha = 2
sigma = 0.05
sigma_fw = 0.15
T_0 = calculate_tangent_point(T_P, alpha, sigma_fw)
[73]:

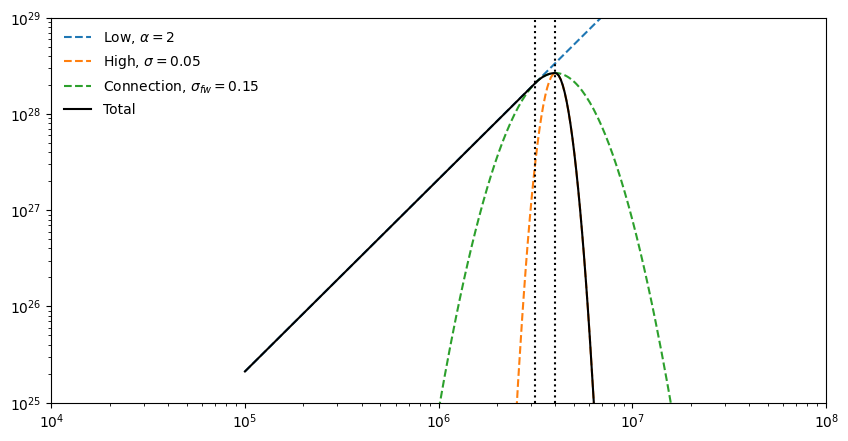

plt.figure(figsize=(10,5))
plt.plot(temperature, EM_total*guennou_dem_low(temperature, T_0, T_P, alpha, sigma_fw), label=f'Low, $\\alpha={alpha}$', ls='--')
plt.plot(temperature, EM_total*guennou_dem_high(temperature, T_P, sigma, sigma_fw), label=f'High, $\\sigma={sigma}$', ls='--')
plt.plot(temperature, EM_total*guennou_dem_connection(temperature, T_P, sigma_fw), label=f'Connection, $\\sigma_{{fw}}={sigma_fw}$', ls='--')
plt.plot(temperature, guennou_dem(temperature, T_P, EM_total, alpha, sigma, sigma_fw=sigma_fw), ls='-', color='k', label='Total')
plt.xscale('log')
plt.yscale('log')
#plt.ylim(EM_total.to_value('cm-5')*np.array([1e-5, 100]))
plt.ylim(1e25, 1e29)
plt.axvline(x=T_0.to_value('K'), ls=':', color='k')
plt.axvline(x=T_P.to_value('K'), ls=':', color='k')
plt.legend(loc=2, frameon=False)
plt.xlim(1e4, 1e8)
[73]:
(10000.0, 100000000.0)

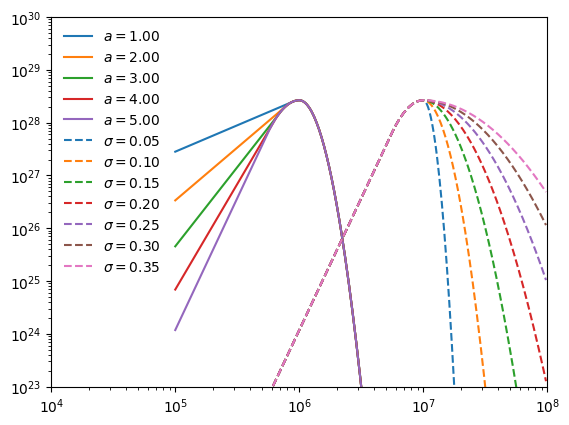

Approximately reproduce the Guennou et al. (2012) Figure 1
[61]:
for i,a in enumerate(np.arange(1,6,1)):
plt.plot(temperature, guennou_dem(temperature, 1*u.MK, EM_total, a, 0.1),
label=f'$a={a:.2f}$', ls='-', color=f'C{i}')
for i,sig in enumerate(np.arange(0.05,0.4,0.05)):
plt.plot(temperature, guennou_dem(temperature, 10*u.MK, EM_total, 5, sig),
ls='--', label=f'$\sigma={sig:.2f}$', color=f'C{i}')
plt.xscale('log')
plt.yscale('log')
plt.ylim(EM_total.to_value('cm-5')*np.array([1e-5, 100]))
#plt.ylim(1e23, 1e28)
plt.legend(loc=2, frameon=False)
plt.xlim(1e4, 1e8)
[61]:
(10000.0, 100000000.0)

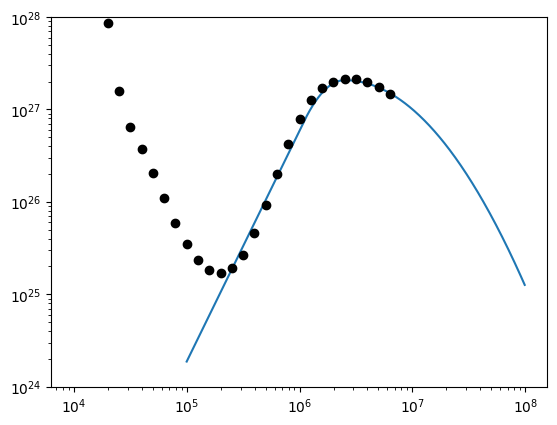

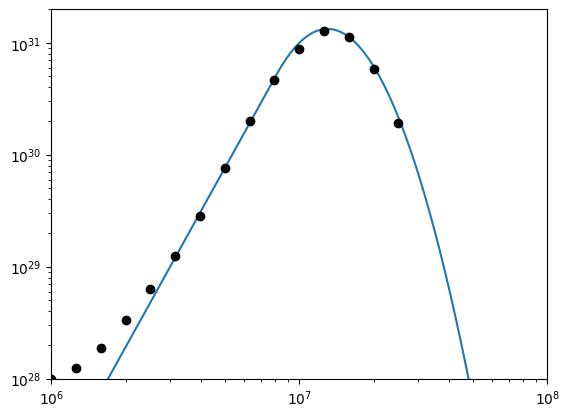

For a given set of parameters, the analytical DEM can match those from CHIANTI fairly well. This is just to prove these are reasonable parameterizations of the curve.
[51]:
plt.plot(temperature, guennou_dem(temperature, 2.5e6*u.K, 1.3e27*u.cm**(-5), 2.5, 0.5, sigma_fw=0.25))
plt.plot(dem_models['active_region.dem'].axis_world_coords(0)[0],
dem_models['active_region.dem'].data, 'ok')
plt.xscale('log')
plt.yscale('log')
plt.ylim(1e24, 1e28)
[51]:
(1e+24, 1e+28)
[52]:
plt.plot(temperature, guennou_dem(temperature, 1.3e7*u.K, 5e30*u.cm**(-5), 4, 0.15, sigma_fw=0.15))
plt.plot(dem_models['flare.dem'].axis_world_coords(0)[0],
dem_models['flare.dem'].data, 'ok')
plt.xscale('log')
plt.yscale('log')
plt.ylim(1e28, 2e31)
plt.xlim(1e6,1e8)
[52]:
(1000000.0, 100000000.0)

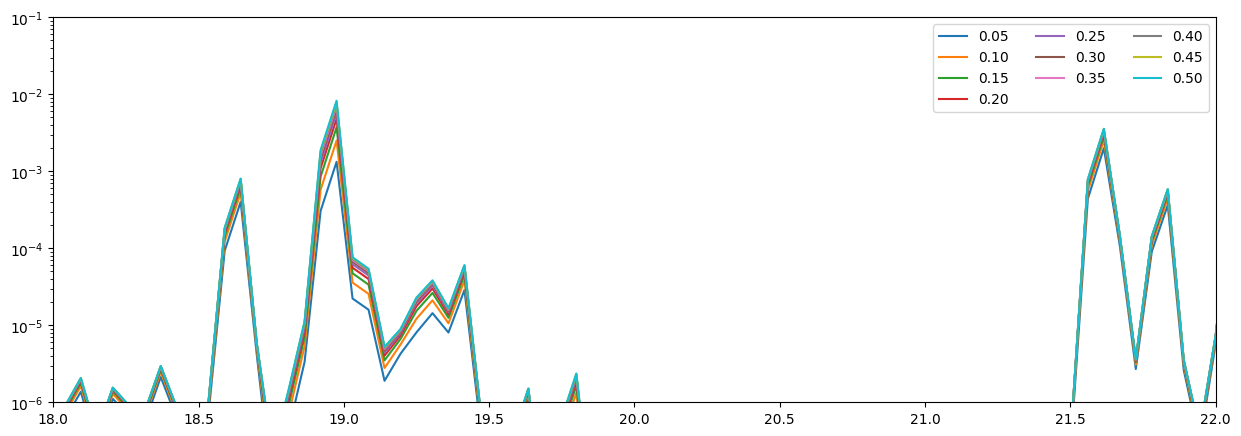

Computing Spectra#

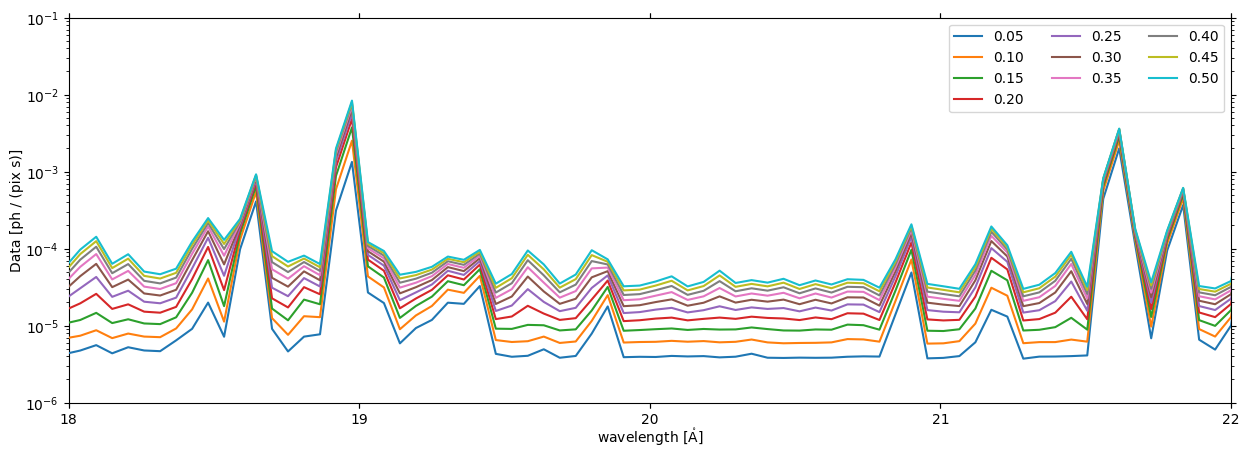

Now, I want to compute spectra while varying \(\sigma\) and \(\alpha\) to better understand how even modest amounts of hot plasma in an AR might change our resulting spectra
[75]:
al_filter = ThinFilmFilter(elements='Al', thickness=150*u.nm, xrt_table='Chantler')
chan_1 = SpectrogramChannel(1, al_filter)
chan_3 = SpectrogramChannel(3, al_filter)
[91]:
earth_observer = get_earth(time='2020-01-01 12:00:00')
flare_loc = SkyCoord(Tx=-900*u.arcsec, Ty=0*u.arcsec,
frame=Helioprojective(obstime=earth_observer.obstime, observer=earth_observer))
roll_angle = -90 * u.deg
dispersion_angle = 0*u.deg
wcs_1 = overlappogram_fits_wcs(
chan_1.detector_shape,
chan_1.wavelength,
(chan_1.resolution[0], chan_1.resolution[1], chan_1.spectral_resolution),
reference_pixel=chan_1.reference_pixel,
reference_coord=(0*u.arcsec, 0*u.arcsec, 0*u.angstrom),
pc_matrix=pcij_matrix(roll_angle, dispersion_angle, order=chan_1.spectral_order,),
observer=earth_observer,
)
wcs_3 = overlappogram_fits_wcs(
chan_3.detector_shape,
chan_3.wavelength,
(chan_3.resolution[0], chan_3.resolution[1], chan_3.spectral_resolution),
reference_pixel=chan_3.reference_pixel,
reference_coord=(0*u.arcsec, 0*u.arcsec, 0*u.angstrom),
pc_matrix=pcij_matrix(roll_angle, dispersion_angle, order=chan_3.spectral_order,),
observer=earth_observer,
)
pix_x_1, _, _ = wcs_1.world_to_pixel(flare_loc, chan_1.wavelength)
pix_x_3, _, _ = wcs_3.world_to_pixel(flare_loc, chan_3.wavelength)
WARNING: No observer defined on WCS, SpectralCoord will be converted without any velocity frame change [astropy.wcs.wcsapi.fitswcs]
[54]:
spec_tables = get_spectral_tables()
WARNING: UnitsWarning: The unit 'Angstrom' has been deprecated in the VOUnit standard. Suggested: 0.1nm. [astropy.units.format.utils]
WARNING: AstropyDeprecationWarning: The truth value of a Quantity is ambiguous. In the future this will raise a ValueError. [astropy.units.quantity]

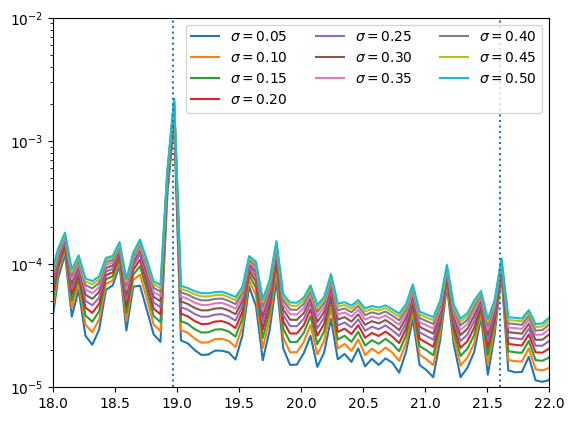

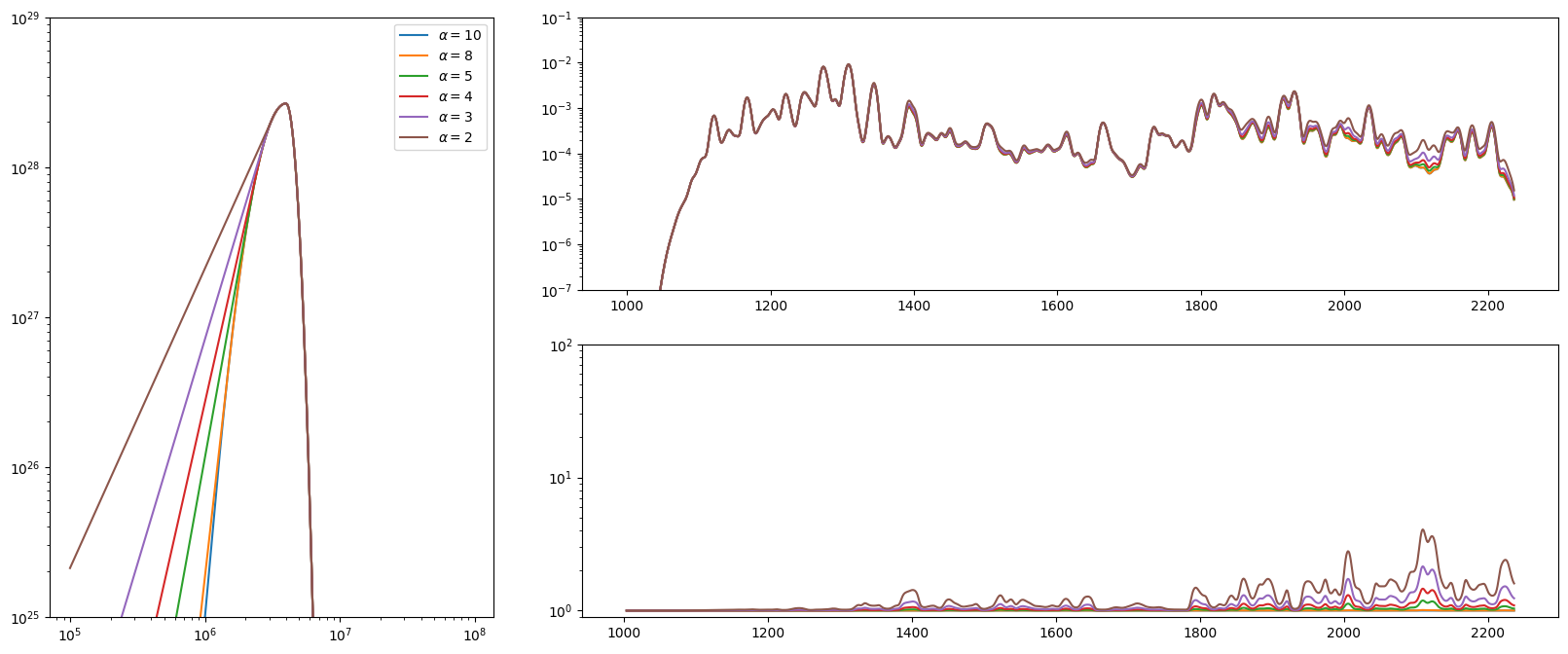

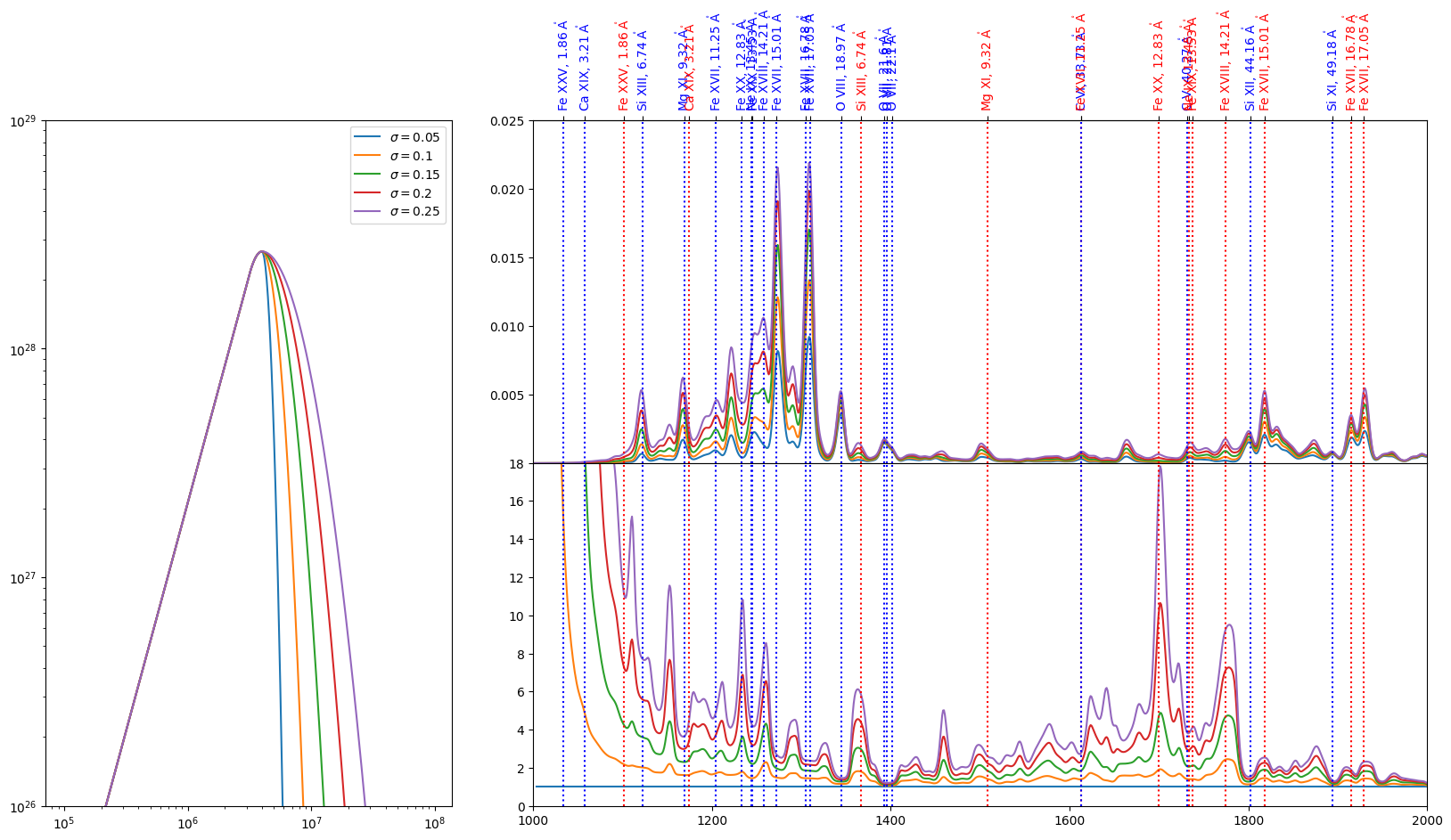

First, fix the amount of cool plasma and vary the relative amount of hot plasma. In all cases, I’m pinning the peak emission measure and the temperature at which it peaks to 4 MK.
[117]:
blur = 0.5 * u.angstrom
[263]:
fig = plt.figure(figsize=(20,10))
gs = GridSpec(2, 3,)
ax1 = fig.add_subplot(gs[:,0])
ax2 = fig.add_subplot(gs[0,1:])
ax3 = fig.add_subplot(gs[1,1:])
#ax3 = ax2.twinx()
sigmas = [0.05, 0.1, 0.15, 0.2, 0.25]
#spec_table = get_abundance('ca','sun_coronal_1992_feldman_ext')*spec_tables['unity_ca']
spec_table = spec_tables['sun_coronal_1992_feldman_ext_all']
flux0 = compute_total_flux(
dem_table_to_ndcube(guennou_dem(temperature, 4*u.MK, EM_total, 2, sigmas[0]), temperature),
spec_table,
chan_1,
chan_3,
pix_x_1,
pix_x_3
)
flux0 = degrade_spectra(flux0, blur, chan_1)
for sig in sigmas:
dem = guennou_dem(temperature, 4*u.MK, EM_total, 2, sig)
ax1.plot(temperature, dem, label=f'$\sigma={sig}$')
flux = compute_total_flux(
dem_table_to_ndcube(dem, temperature),
spec_table,
chan_1,
chan_3,
pix_x_1,
pix_x_3
)
flux = degrade_spectra(flux, blur, chan_1)
ax2.plot(pix_x_1, flux.data, label=f'$\sigma={sig}$')
ax3.plot(pix_x_1, flux.data/flux0.data, ls='-')
# Add vertical lines denoting lines
order_1_color = 'blue'
order_3_color = 'red'
for ion,line in line_ids:
x_pos,_,_ = wcs_1.world_to_pixel(flare_loc, line)
ax2.axvline(x=x_pos, ls=':', color=order_1_color,)
ax3.axvline(x=x_pos, ls=':', color=order_1_color,)
x_pos,_,_ = wcs_3.world_to_pixel(flare_loc, line)
ax2.axvline(x=x_pos, ls=':', color=order_3_color,)
ax3.axvline(x=x_pos, ls=':', color=order_3_color,)
# Add tick labels for lines
tick_locs_1 = wcs_1.world_to_pixel(flare_loc, u.Quantity([l for _,l in line_ids]))[0]
tick_locs_3 = wcs_3.world_to_pixel(flare_loc, u.Quantity([l for _,l in line_ids]))[0]
tick_labels = [f'{ion}, {line.to_string(format="latex_inline")}' for ion,line in line_ids]
ax_top = ax2.secondary_xaxis('top')
ax_top.set_xticks(np.hstack([tick_locs_1, tick_locs_3]),
labels=tick_labels+tick_labels,
rotation=90,
horizontalalignment='center',
color=order_1_color);
for i,tick in enumerate(ax_top.get_xticklabels()):
if i>=len(tick_labels):
tick.set_color(order_3_color)
# Limits and scale
ax1.set_yscale('log')
ax1.set_xscale('log')
ax1.set_ylim(1e26, 1e29)
ax1.legend()
#ax2.set_yscale('log')
ax2.set_ylim(2e-5, 2.5e-2)
ax2.set_xlim(1000,2000)
ax3.set_ylim(0,18)
#ax3.set_yscale('log')
ax3.set_xlim(ax2.get_xlim())
# Spacing and tick pruning
ax2.set_xticks([])
plt.subplots_adjust(hspace=0)
/var/folders/cr/pj7yk8p976d7ny98bgvlpfyr0000gq/T/ipykernel_60442/2864038658.py:32: RuntimeWarning: invalid value encountered in divide
ax3.plot(pix_x_1, flux.data/flux0.data, ls='-')
[254]:
ax2.get_xlim()
[254]:
(1000.0, 2000.0)
[137]:
fig = plt.figure(figsize=(20,8))
gs = GridSpec(2, 3,)
ax1 = fig.add_subplot(gs[:,0])
ax2 = fig.add_subplot(gs[0,1:])
ax3 = fig.add_subplot(gs[1,1:])
flux0 = compute_total_flux(
dem_table_to_ndcube(guennou_dem(temperature, 4*u.MK, EM_total, 10, 0.05), temperature),
spec_table,
chan_1,
chan_3,
pix_x_1,
pix_x_3
)
flux0 = degrade_spectra(flux0, blur, chan_1)
for alpha in [10, 8, 5, 4, 3, 2]:
dem = guennou_dem(temperature, 4*u.MK, EM_total, alpha, 0.05)
ax1.plot(temperature, dem, label=f'$\\alpha={alpha}$')
flux = compute_total_flux(
dem_table_to_ndcube(dem, temperature),
spec_table,
chan_1,
chan_3,
pix_x_1,
pix_x_3
)
flux = degrade_spectra(flux, blur, chan_1)
ax2.plot(pix_x_1, flux.data)
ax3.plot(pix_x_1, flux.data/flux0.data)
ax2.set_yscale('log')
ax2.set_ylim(1e-7, 1e-1)
ax1.set_yscale('log')
ax1.set_xscale('log')
ax1.set_ylim(1e25, 1e29)
ax3.set_ylim(9e-1,1e2)
ax3.set_yscale('log')
ax1.legend()
/var/folders/cr/pj7yk8p976d7ny98bgvlpfyr0000gq/T/ipykernel_60442/3889499626.py:28: RuntimeWarning: invalid value encountered in divide
ax3.plot(pix_x_1, flux.data/flux0.data)
[137]:
<matplotlib.legend.Legend at 0x2c5e3e280>
Intensity Ratios#
Decide which ranges to iterate over for each quantity:
\(1<T_P<10\) MK in steps of 1 MK
\(2<a<10\) in steps of 1
\(0.05<\sigma<0.5\) in steps of 0.05
[26]:
peak_temperatures = 10**np.arange(6.0,7.6,.1) * u.K
cool_slopes = np.arange(2,11,1)
hot_sigmas = np.arange(0.05, 0.55, 0.05)
[27]:
flux_cube = np.zeros(chan.wavelength.shape + peak_temperatures.shape + cool_slopes.shape + hot_sigmas.shape)
dem_cube = np.zeros(temperature.shape + flux_cube.shape[1:]) * u.Unit('cm-5')
[28]:
for i, TP in enumerate(peak_temperatures):
for j, a in enumerate(cool_slopes):
for k, sigma in enumerate(hot_sigmas):
#print(TP, a, sigma)
dem = guennou_dem(temperature, TP, 1e27*u.cm**(-5), a, sigma)
dem_cube[:, i, j, k] = dem
intensity = InstrumentDEM.calculate_intensity(
dem_table_to_ndcube(dem, temperature),
spec_tables['sun_coronal_1992_feldman_ext_all'],
{},
)
flux = convolve_with_response(intensity, chan, electrons=False, include_gain=False)
flux_cube[:, i, j, k] = flux.data
[87]:
flux_cube_oxygen = np.zeros(chan.wavelength.shape + peak_temperatures.shape + cool_slopes.shape + hot_sigmas.shape)
for i, TP in enumerate(peak_temperatures):
for j, a in enumerate(cool_slopes):
for k, sigma in enumerate(hot_sigmas):
intensity = InstrumentDEM.calculate_intensity(
dem_table_to_ndcube(dem_cube[:, i, j, k], temperature),
spec_tables['unity_o']*get_abundance('O', 'sun_coronal_1992_feldman_ext'),
{},
)
flux = convolve_with_response(intensity, chan, electrons=False, include_gain=False)
flux_cube_oxygen[:, i, j, k] = flux.data
WARNING: UnitsWarning: The unit 'Angstrom' has been deprecated in the VOUnit standard. Suggested: 0.1nm. [astropy.units.format.utils]
/Users/wtbarnes/mambaforge/envs/mocksipipeline/lib/python3.9/site-packages/astropy/units/quantity.py:626: RuntimeWarning: divide by zero encountered in divide
result = super().__array_ufunc__(function, method, *arrays, **kwargs)
[88]:
flux_cube_iron = np.zeros(chan.wavelength.shape + peak_temperatures.shape + cool_slopes.shape + hot_sigmas.shape)
for i, TP in enumerate(peak_temperatures):
for j, a in enumerate(cool_slopes):
for k, sigma in enumerate(hot_sigmas):
intensity = InstrumentDEM.calculate_intensity(
dem_table_to_ndcube(dem_cube[:, i, j, k], temperature),
spec_tables['unity_fe']*get_abundance('Fe', 'sun_coronal_1992_feldman_ext'),
{},
)
flux = convolve_with_response(intensity, chan, electrons=False, include_gain=False)
flux_cube_iron[:, i, j, k] = flux.data
[29]:
flux_cube_wcs = (
QuantityTableCoordinate(u.Quantity(hot_sigmas), names='sigma') &
QuantityTableCoordinate(u.Quantity(cool_slopes), names='a') &
QuantityTableCoordinate(peak_temperatures, names='peak temperature', physical_types='phys.temperature') &
QuantityTableCoordinate(chan.wavelength, names='wavelength', physical_types='em.wavelength')
).wcs
flux_ndcube = ndcube.NDCube(flux_cube, wcs=flux_cube_wcs, unit=flux.unit)
[138]:
line_index_num = 1
line_index_denom = 7
sigma_index = 0
line_ratio = get_line_ratio(flux_cube,
chan.wavelength,
line_ids[line_index_num][1],
line_ids[line_index_denom][1],)
amesh,tpmesh = np.meshgrid(cool_slopes,peak_temperatures.to_value('K'))
norm = matplotlib.colors.LogNorm()
#norm = matplotlib.colors.Normalize()
plt.pcolormesh(tpmesh,
amesh,
line_ratio[...,sigma_index],
norm=norm)
plt.colorbar()
contours = plt.contour(tpmesh,
amesh,
line_ratio[...,sigma_index],
15,
cmap='Greys',
)#norm=norm)
plt.clabel(contours, levels=contours.levels,)
plt.xlabel('$T_P$')
plt.ylabel('$a$')
plt.title(f'{line_ids[line_index_num][0]} {line_ids[line_index_num][1]} / {line_ids[line_index_denom][0]} {line_ids[line_index_denom][1]}, $\sigma={hot_sigmas[sigma_index]:.2f}$')
#plt.colorbar()
plt.xscale('log')
[139]:
line_index_num = 1
line_index_denom = 7
a_index = 8
line_ratio = get_line_ratio(flux_cube,
chan.wavelength,
line_ids[line_index_num][1],
line_ids[line_index_denom][1],)
sigmesh,tpmesh = np.meshgrid(hot_sigmas, peak_temperatures.to_value('K'))
norm = matplotlib.colors.LogNorm()
plt.pcolormesh(tpmesh,sigmesh,line_ratio[:,a_index,:],
norm=norm)
plt.colorbar()
contours = plt.contour(tpmesh,
sigmesh,
line_ratio[:,a_index,:],
15,
cmap='Greys',
)#norm=norm)
plt.clabel(contours, levels=contours.levels,)
plt.xlabel('$T_P$')
plt.ylabel('$\sigma$')
plt.title(f'{line_ids[line_index_num][0]} {line_ids[line_index_num][1]} / {line_ids[line_index_denom][0]} {line_ids[line_index_denom][1]}, $a={cool_slopes[a_index]:.2f}$')
#plt.colorbar()
plt.xscale('log')
[176]:
line_index_num = 7
line_index_denom = 5
Tp_index = 10
line_ratio = get_line_ratio(flux_cube,
chan.wavelength,
line_ids[line_index_num][1],
line_ids[line_index_denom][1],)
sigmesh,amesh = np.meshgrid(hot_sigmas, cool_slopes)
#norm = matplotlib.colors.LogNorm()
norm = matplotlib.colors.Normalize()
plt.pcolormesh(amesh,sigmesh,line_ratio[Tp_index,...],
norm=norm)
plt.colorbar()
contours = plt.contour(amesh,
sigmesh,
line_ratio[Tp_index,...],
15,
cmap='Greys',
)#norm=norm)
plt.clabel(contours, levels=contours.levels,)
plt.xlabel('$a$')
plt.ylabel('$\sigma$')
plt.title(
f'{line_ids[line_index_num][0]} {line_ids[line_index_num][1]} / {line_ids[line_index_denom][0]} {line_ids[line_index_denom][1]}, $T_P={peak_temperatures[Tp_index].to("MK"):.2f}$')
#plt.colorbar()
[176]:
Text(0.5, 1.0, 'O VIII 18.97 Angstrom / O VII 21.81 Angstrom, $T_P=10.00 MK$')
[156]:
line_index_num = 7
line_index_denom = 5
Tp_index = 10
line_ratio = get_line_ratio(flux_cube_oxygen,
chan.wavelength,
line_ids[line_index_num][1],
line_ids[line_index_denom][1],)
sigmesh,amesh = np.meshgrid(hot_sigmas, cool_slopes)
#norm = matplotlib.colors.LogNorm()
norm = matplotlib.colors.Normalize()
plt.pcolormesh(amesh,sigmesh,line_ratio[Tp_index,...],
norm=norm)
plt.colorbar()
contours = plt.contour(amesh,
sigmesh,
line_ratio[Tp_index,...],
15,
cmap='Greys',
)#norm=norm)
plt.clabel(contours, levels=contours.levels,)
plt.xlabel('$a$')
plt.ylabel('$\sigma$')
plt.title(
f'{line_ids[line_index_num][0]} {line_ids[line_index_num][1]} / {line_ids[line_index_denom][0]} {line_ids[line_index_denom][1]}, $T_P={peak_temperatures[Tp_index].to("MK"):.2f}$')
#plt.colorbar()
[156]:
Text(0.5, 1.0, 'O VIII 18.97 Angstrom / O VII 21.81 Angstrom, $T_P=10.00 MK$')
[55]:

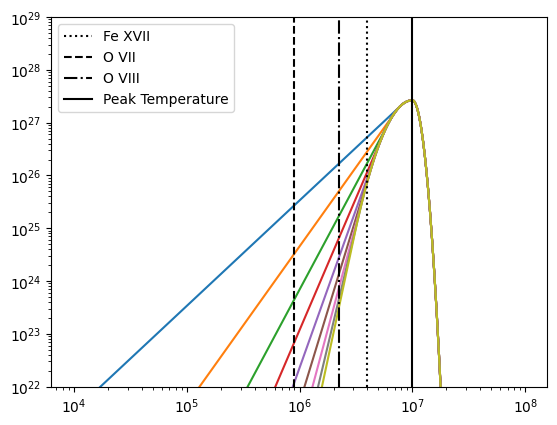

for i,a in enumerate(cool_slopes):
plt.plot(temperature, dem_cube[:,Tp_index,i,0])
plt.xscale('log')
plt.yscale('log')
plt.ylim(1e22,1e29)
#plt.ylim(.1,1e3)
plt.axvline(x=fe_17.formation_temperature.to_value('K'), ls=':', color='k', label=fe_17.ion_name_roman)
plt.axvline(x=o_7.formation_temperature.to_value('K'), ls='--', color='k', label=o_7.ion_name_roman)
plt.axvline(x=o_8.formation_temperature.to_value('K'), ls='-.', color='k', label=o_8.ion_name_roman)
plt.axvline(x=peak_temperatures[Tp_index].to_value('K'), ls='-', color='k', label='Peak Temperature')
plt.legend()
[55]:
<matplotlib.legend.Legend at 0x2c2878ac0>
[57]:
for i,sig in enumerate(hot_sigmas):
plt.plot(chan.wavelength, flux_cube[:,Tp_index,4,i], label=f'$\sigma={sig:.2f}$')
plt.axvline(x=line_ids[4][1].to_value('Angstrom'),ls=':')
plt.axvline(x=line_ids[7][1].to_value('Angstrom'),ls=':')
plt.xlim(18,22)
plt.yscale('log')
plt.ylim(1e-5,1e-2)
plt.legend(ncol=3)
[57]:
<matplotlib.legend.Legend at 0x2c2dc64c0>
[125]:
fig = plt.figure(figsize=(15,5))
ax = fig.add_subplot(projection=flux_ndcube[:,0,0,0].wcs)
for i,hs in enumerate(hot_sigmas):
flux_ndcube[:,Tp_index, 0,i].plot(axes=ax, label=f'{hs:.2f}')
ax.legend(ncol=3)
ax.set_yscale('log')
ax.set_ylim(1e-6,1e-1)
ax.set_xlim(ax.wcs.world_to_pixel_values([18,22]*u.angstrom))
WARNING: UnitsWarning: The unit 'Angstrom' has been deprecated in the VOUnit standard. Suggested: 0.1nm. [astropy.units.format.utils]
[125]:
(327.27272727272725, 400.0)
[127]:
fig = plt.figure(figsize=(15,5))
ax = fig.add_subplot()
for i,hs in enumerate(hot_sigmas):
ax.plot(chan.wavelength, flux_cube_oxygen[:, Tp_index, 0, i], label=f'{hs:.2f}')
ax.legend(ncol=3)
ax.set_yscale('log')
ax.set_ylim(1e-6,1e-1)
ax.set_xlim(18,22)
[127]:
(18.0, 22.0)
[134]:

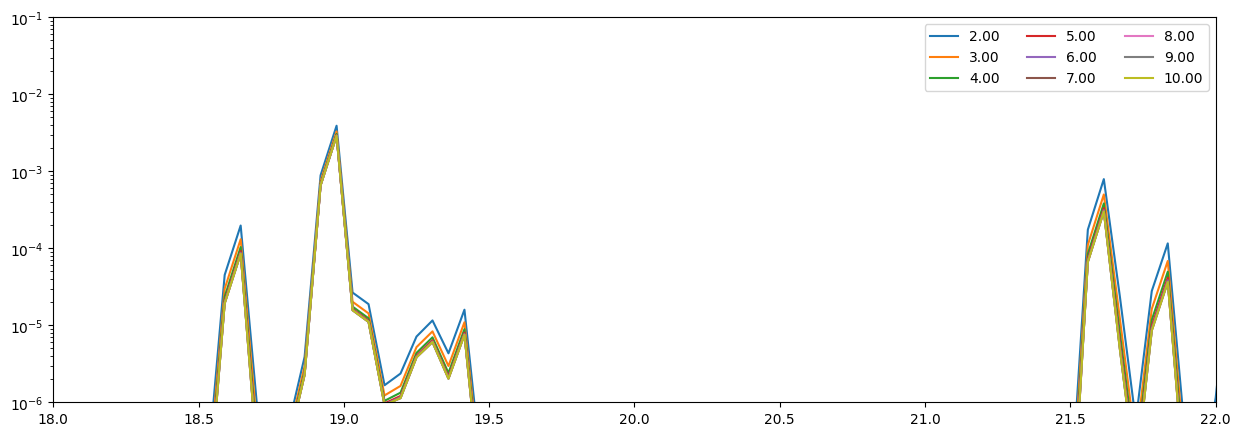

fig = plt.figure(figsize=(15,5))
ax = fig.add_subplot()
for i,a in enumerate(cool_slopes):
ax.plot(chan.wavelength, flux_cube_oxygen[:, 8, i, 0], label=f'{a:.2f}')
ax.legend(ncol=3)
ax.set_yscale('log')
ax.set_ylim(1e-6,1e-1)
ax.set_xlim(18,22)
[134]:
(18.0, 22.0)
Comparisons with Relevant Contribution Functions#
[23]:
fe_17 = fiasco.Ion('Fe XVII', temperature)
o_7 = fiasco.Ion('O VII', temperature)
o_8 = o_7.next_ion()
[159]:

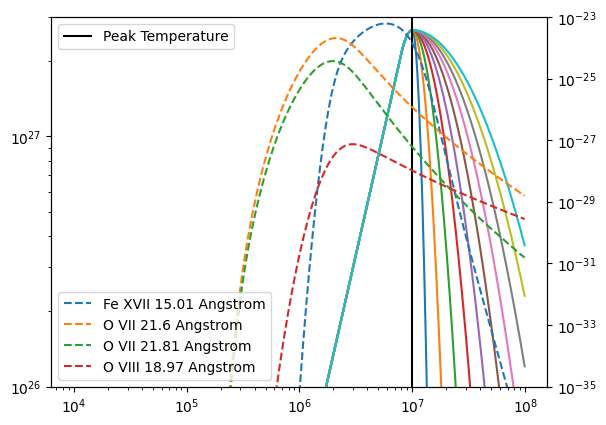

fig = plt.figure()
ax = fig.add_subplot()
for i,hs in enumerate(hot_sigmas):
ax.plot(temperature, dem_cube[:,Tp_index,0,i])#/dem_cube[:,Tp_index,-1,0])
ax2 = ax.twinx()
for li in [line_ids[1], line_ids[4], line_ids[5], line_ids[7]]:
ax2.plot(temperature, get_goft(fiasco.Ion(li[0], temperature), li[1]),
label=f'{li[0]} {li[1]}', ls='--')
ax.set_xscale('log')
ax.set_yscale('log')
ax2.set_yscale('log')
ax.set_ylim(1e26,3e27)
ax2.set_ylim(1e-35, 1e-23)
#plt.ylim(.1,1e3)
#plt.axvline(x=fe_17.formation_temperature.to_value('K'), ls=':', color='k', label=fe_17.ion_name_roman)
#plt.axvline(x=o_7.formation_temperature.to_value('K'), ls='--', color='k', label=o_7.ion_name_roman)
#plt.axvline(x=o_8.formation_temperature.to_value('K'), ls='-.', color='k', label=o_8.ion_name_roman)
ax.axvline(x=peak_temperatures[Tp_index].to_value('K'), ls='-', color='k', label='Peak Temperature')
ax.legend(loc=2)
ax2.legend(loc=3)
WARNING: No proton data available for Fe 17. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 8. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
[159]:
<matplotlib.legend.Legend at 0x347aa9e80>
[160]:

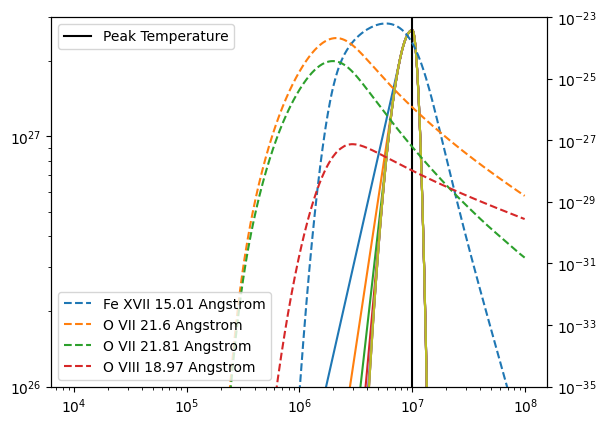

fig = plt.figure()
ax = fig.add_subplot()
for i,a in enumerate(cool_slopes):
ax.plot(temperature, dem_cube[:,Tp_index,i,0])#/dem_cube[:,Tp_index,-1,0])
ax2 = ax.twinx()
for li in [line_ids[1], line_ids[4], line_ids[5], line_ids[7]]:
ax2.plot(temperature, get_goft(fiasco.Ion(li[0], temperature), li[1]),
label=f'{li[0]} {li[1]}', ls='--')
ax.set_xscale('log')
ax.set_yscale('log')
ax2.set_yscale('log')
ax.set_ylim(1e26,3e27)
ax2.set_ylim(1e-35, 1e-23)
#plt.ylim(.1,1e3)
#plt.axvline(x=fe_17.formation_temperature.to_value('K'), ls=':', color='k', label=fe_17.ion_name_roman)
#plt.axvline(x=o_7.formation_temperature.to_value('K'), ls='--', color='k', label=o_7.ion_name_roman)
#plt.axvline(x=o_8.formation_temperature.to_value('K'), ls='-.', color='k', label=o_8.ion_name_roman)
ax.axvline(x=peak_temperatures[Tp_index].to_value('K'), ls='-', color='k', label='Peak Temperature')
ax.legend(loc=2)
ax2.legend(loc=3)
WARNING: No proton data available for Fe 17. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 8. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
[160]:
<matplotlib.legend.Legend at 0x347d5d2b0>
[167]:

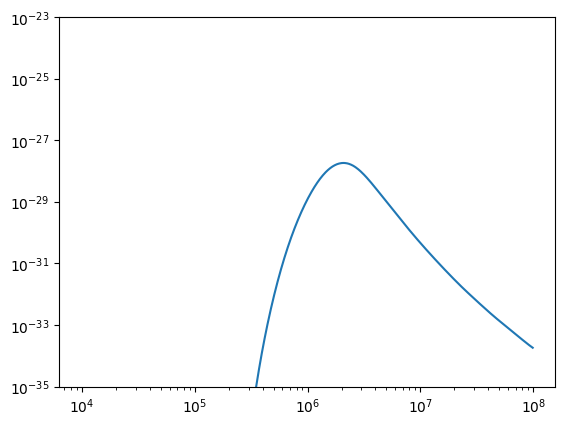

plt.plot(temperature, get_goft(fiasco.Ion('O VII', temperature), 18.9723*u.AA), label='18.9723')
plt.plot(temperature, get_goft(fiasco.Ion('O VII', temperature), 18.9726*u.AA), label='18.9726')
plt.xscale('log')
plt.yscale('log')
plt.ylim(1e-35, 1e-23)
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
[167]:
(1e-35, 1e-23)
[203]:
silicon = fiasco.Element('Si', np.logspace(4,9,10000)*u.K)
oxygen = fiasco.Element('O', silicon.temperature)
[209]:

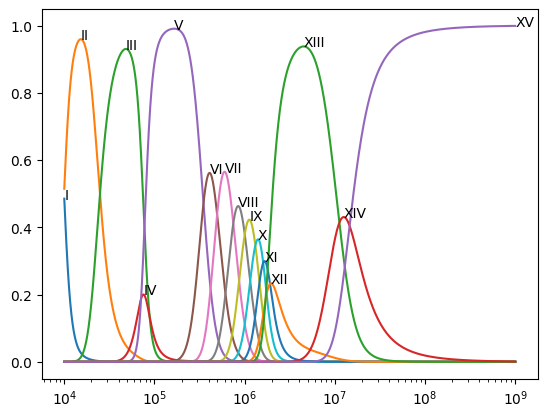

for ion in silicon:
ioneq = silicon.equilibrium_ionization[:, ion.charge_state]
plt.plot(silicon.temperature, ioneq)
plt.annotate(ion.ionization_stage_roman, (ion.temperature[ioneq.argmax()].value, ioneq.max().value))
plt.xscale('log')
[210]:

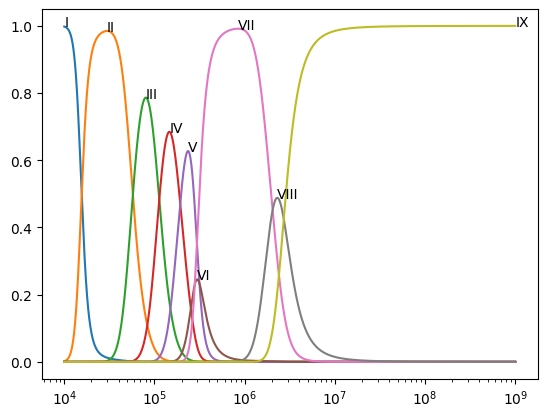

for ion in oxygen:
ioneq = oxygen.equilibrium_ionization[:, ion.charge_state]
plt.plot(oxygen.temperature, ioneq)
plt.annotate(ion.ionization_stage_roman, (ion.temperature[ioneq.argmax()].value, ioneq.max().value))
plt.xscale('log')
[ ]:
