Spectral Line Summary#

This notebook summarizes some properties of the spectral lines that are listed in Table 2 of the original CubiXSS proposal.

One of the goals here is to find lines of different elements that have similar looking contribution functions (in order to make abundance measurements) as well as different looking contribution functions of the same element to do temperature diagnostics (i.e. line ratios).

[8]:

import astropy.units as u
from astropy.visualization import quantity_support
import numpy as np
import matplotlib.pyplot as plt
import fiasco
from fiasco.io import Parser

The lines listed below are all of those from Table 2.

[2]:

line_ids = [
    ('Fe XVIII',14.21*u.angstrom),  # also targeted by MaGIXS
    ('Fe XVII', 15.01*u.angstrom),  # also targeted by MaGIXS
    ('Fe XVII', 16.78*u.AA),
    ('Fe XVII', 17.05*u.AA),
    ('O VII', 21.60*u.angstrom),  # also targeted by MaGIXS
    ('O VII', 21.81*u.angstrom),
    ('O VII', 22.10*u.AA),
    ('O VIII', 18.97*u.angstrom),  # also targeted by MaGIXS
    ('Fe XXV', 1.86*u.AA),
    ('Ca XIX', 3.21*u.AA),
    ('Si XIII', 6.74*u.AA),
    ('Mg XI', 9.32*u.AA),
    ('Fe XVII', 11.25*u.AA),
    ('Fe XX', 12.83*u.AA),
    ('Ne IX', 13.45*u.AA),
    ('Fe XIX', 13.53*u.AA),
    ('C VI', 33.73*u.AA),
    ('C V', 40.27*u.AA),
    ('Si XII', 44.16*u.AA),
    ('Si XI', 49.18*u.AA),
]

[3]:

def get_goft(ion, density, wave):
    g_of_t = ion.contribution_function(density)
    transitions = ion.transitions.wavelength[~ion.transitions.is_twophoton]
    idx = np.argmin(np.abs(transitions - wave))
    return g_of_t[..., idx]

[4]:

contribution_functions = []
temperature = 10**np.arange(5,7.5,0.05)*u.K
density = 1e9 * u.cm**(-3)
for ion_name, wave in line_ids:
    print(ion_name, wave)
    ion = fiasco.Ion(ion_name, temperature,
                     abundance='sun_coronal_1992_feldman_ext',
                     hdf5_dbase_root='/Users/wtbarnes/Documents/projects/chianti/CHIANTI_v8.0.7/dbase.h5')
    g_of_t = get_goft(ion, density, wave)
    contribution_functions.append(g_of_t[:,0])

Fe XVIII 14.21 Angstrom
Fe XVII 15.01 Angstrom

WARNING: No proton data available for Fe 17. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

Fe XVII 16.78 Angstrom

WARNING: No proton data available for Fe 17. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

Fe XVII 17.05 Angstrom

WARNING: No proton data available for Fe 17. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

O VII 21.6 Angstrom
O VII 21.81 Angstrom
O VII 22.1 Angstrom
O VIII 18.97 Angstrom

WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 7. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for O 8. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

Fe XXV 1.86 Angstrom
Ca XIX 3.21 Angstrom
Si XIII 6.74 Angstrom
Mg XI 9.32 Angstrom

WARNING: No proton data available for Fe 25. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for Ca 19. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for Si 13. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for Mg 11. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

Fe XVII 11.25 Angstrom

WARNING: No proton data available for Fe 17. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

Fe XX 12.83 Angstrom
Ne IX 13.45 Angstrom
Fe XIX 13.53 Angstrom

WARNING: No proton data available for Ne 9. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

C VI 33.73 Angstrom
C V 40.27 Angstrom
Si XII 44.16 Angstrom

WARNING: No proton data available for C 5. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]
WARNING: No proton data available for Si 12. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

Si XI 49.18 Angstrom

[11]:

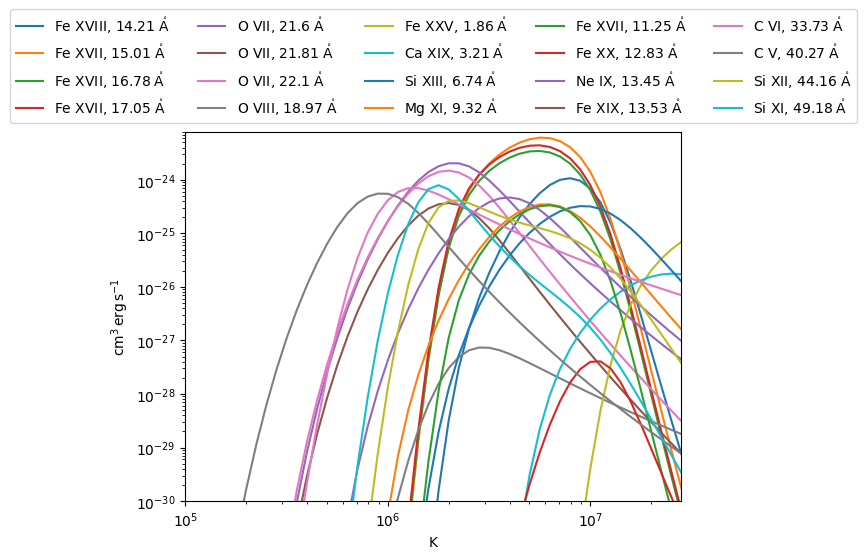

fig = plt.figure()
ax = fig.add_subplot()
with quantity_support():
    for g,(ion,wave) in zip(contribution_functions, line_ids):
        ax.plot(temperature, g, label=f'{ion}, {wave.to_string(format="latex_inline")}')
ax.legend(ncol=5,loc='upper center', bbox_to_anchor=(.5, 1.35))
ax.set_yscale('log')
ax.set_xscale('log')
ax.set_ylim(1e-30,8e-24)
ax.set_xlim(temperature[[0,-1]].value)
#ax.set_ylim(1e-6,3)

[11]:

(100000.0, 28183829.312643975)

../_images/reports_spectral-line-summary_6_1.png

[12]:

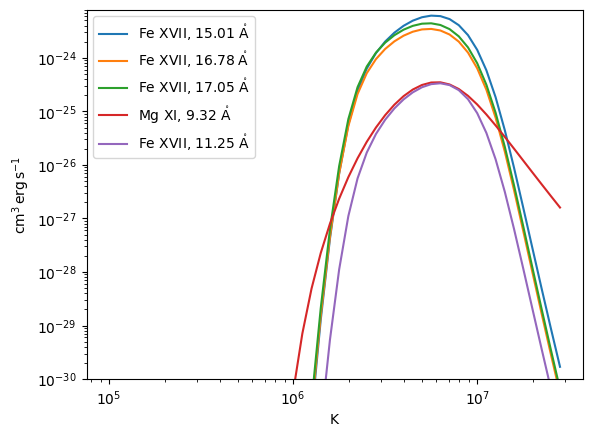

fig = plt.figure()
ax = fig.add_subplot()
with quantity_support():
    for g,(ion,wave) in zip(contribution_functions, line_ids):
        if ion in ('Mg XI', 'Fe XVII'):
            ax.plot(temperature, g, label=f'{ion}, {wave.to_string(format="latex_inline")}')
ax.legend()#ncol=5,loc='upper center', bbox_to_anchor=(.5, 1.35))
ax.set_yscale('log')
ax.set_xscale('log')
ax.set_ylim(1e-30,8e-24)

[12]:

(1e-30, 8e-24)

../_images/reports_spectral-line-summary_7_1.png

[13]:

si_11 = fiasco.Ion('Si 11', temperature=temperature, abundance='sun_coronal_1992_feldman_ext', hdf5_dbase_root='/Users/wtbarnes/Documents/projects/chianti/CHIANTI_v8.0.7/dbase.h5')
si_12 = fiasco.Ion('Si 12', temperature=temperature, abundance='sun_coronal_1992_feldman_ext', hdf5_dbase_root='/Users/wtbarnes/Documents/projects/chianti/CHIANTI_v8.0.7/dbase.h5')

[14]:

g_of_t_si11 = get_goft(si_11, 1e10*u.cm**(-3), 43.7620 * u.angstrom)
g_of_t_si12 = get_goft(si_12, 1e10*u.cm**(-3), 44.1603 * u.angstrom)

WARNING: No proton data available for Si 12. Not including proton excitation and de-excitation in level populations calculation. [fiasco.ions]

[15]:

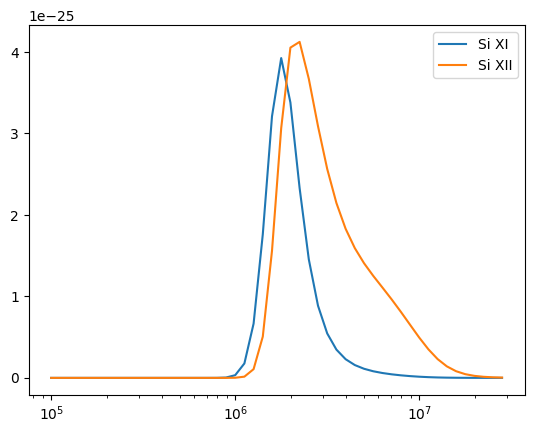

fig = plt.figure()
ax = fig.add_subplot()
ax.plot(temperature, g_of_t_si11[:,0], label='Si XI')
ax.plot(temperature, g_of_t_si12[:,0], label='Si XII')
#ax.set_yscale('log')
ax.set_xscale('log')
#ax.set_ylim(1e-26,1e-24)
ax.legend()

[15]:

<matplotlib.legend.Legend at 0x2d7e5bbe0>

../_images/reports_spectral-line-summary_10_1.png

[18]:

si = fiasco.Element('Si', np.logspace(4,8,1000)*u.K, hdf5_dbase_root='/Users/wtbarnes/Documents/projects/chianti/CHIANTI_v8.0.7/dbase.h5')
ioneq_si = si.equilibrium_ionization

[19]:

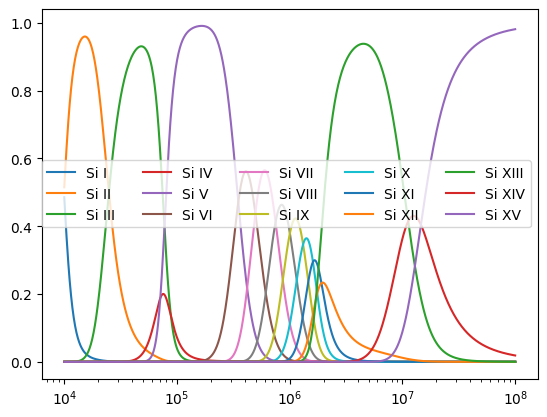

fig = plt.figure()
ax = fig.add_subplot()
for i in si:
    ax.plot(si.temperature, ioneq_si[:, i.charge_state], label=i.ion_name_roman)
ax.set_xscale('log')
ax.legend(ncol=5)

[19]:

<matplotlib.legend.Legend at 0x2db1c1f10>

../_images/reports_spectral-line-summary_12_1.png

[ ]:
